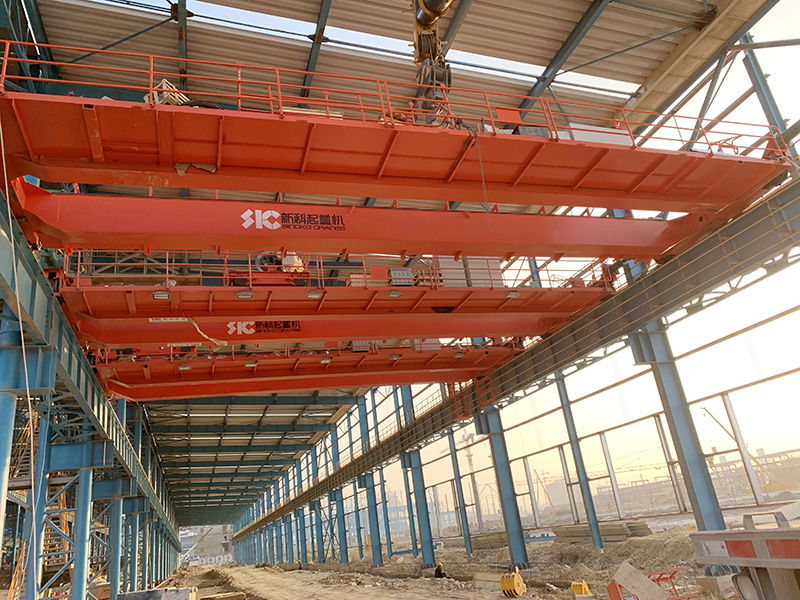

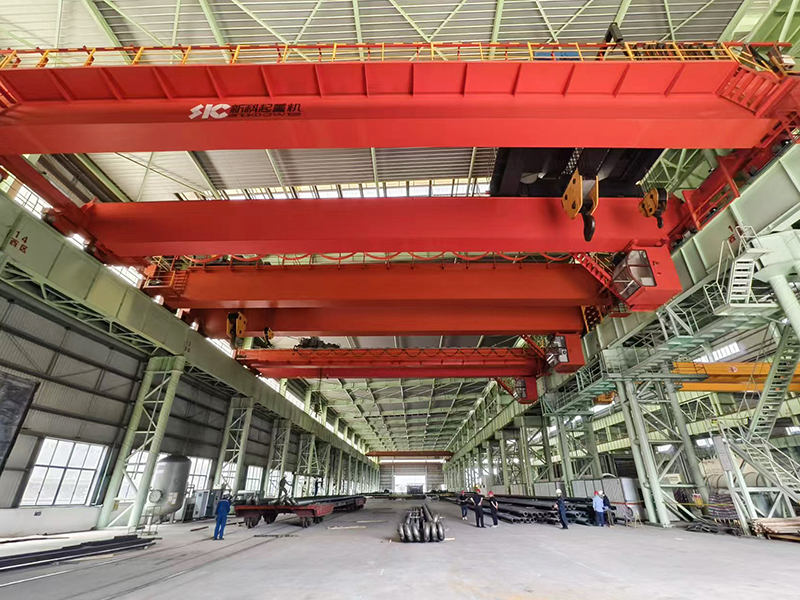

New type of crane
high performance
Maximum increase rate increased by 70%
30% increase in effective workspace
lightweight
Adopting lightweight design, reducing the overall weight of the machine by 30%
low energy consumption
The overall power of the machine decreases by 15%~35%, and the wheel pressure decreases by 15%~56%
stability
Fully variable frequency control, stable operation with an annual failure rate reduced by 65%
modularization
The product has great versatility and can easily add intelligent control functions, reducing the design cycle by 60%
automation
Automated control, equipped with remote monitoring technology, freeing up labor costs and improving work efficiency
1）The main steel structure (main beam, end beam) is made of Q235-B material, which comes with material reports and corresponding qualification certificates.
2）The manufacturing, welding, and inspection of steel structures are conducted in accordance with national standards. For critical load-bearing butt welds, a double-sided groove welding process is employed, and visual inspection and non-destructive testing are carried out as prescribed. All welders hold corresponding qualification certificates.
3) All crane main beams adopt the full-plate butt-free welding process, eliminating the need for steel plate butt welds and thus removing potential quality hazards associated with steel plate butt welding. (Steel plate butt welding is a critical welding process and a location with numerous quality hazards.)
4）All plates are automatically cut using a CNC cutting machine, with preset camber for the main beam, to avoid the problem of camber deflection in traditional fire-bending of main beams.
5）The steel surface undergoes shot blasting treatment, achieving a surface roughness of Grade Sa2.5 as specified in GB8923 "Registration and Rust Removal Grades of Steel Surface Preparation before Painting". This enhances paint adhesion, prevents paint from peeling off, and ensures the long-term aesthetic appearance of the single-beam crane as a whole.
6）The longitudinal waist weld of the main beam adopts the domestically advanced automatic special machine for submerged arc welding, resulting in an aesthetically pleasing shape and ensuring welding quality.
7）The crossbeam of the cart is made of rectangular tubes as a whole, without splicing or welding seams, featuring an aesthetic appearance, sturdiness, and durability.
8）All wheel installations utilize boring installation to prevent the wheel treads from not being on the same horizontal plane, thereby enhancing the operational precision of the wheels.
Any questions?
Sinoko Lifting Technology Consultant at your service!
0373-8625222
xkxiaoshoubu@163.com
We undertake all aspects of crane maintenance and repair services, saving you time and worry. Our fully independent production and suppliers meet our needs for providing high-quality mechanical and electrical components to our customers.
The company regularly visits the site to assist users in conducting routine inspections of electrical systems, transmission systems, and braking systems, and provides systematic training and explanations to operators and maintenance personnel. It also gathers information about product usage and customer needs, and provides solutions for customers.
In response to customers' requests for crane modification and upgrading, we will go all out, maintain close communication with our company's R&D team, and promptly provide customers with reliable technical modification solutions. Strong technical strength and confidence are the driving force and cornerstone that enable us to dare to challenge difficulties.
The company possesses comprehensive crane installation qualifications and has a well-equipped and experienced team, ensuring high safety and efficiency in crane installation, thus providing customers with greater peace of mind!
